Have you ever turned on your car’s air conditioner (AC) expecting a cool blast, only to be met with warm air? Frustrating, right? Many of us take our car’s AC for granted—until it stops working. But have you ever wondered how it actually functions?
In this guide, we’ll break down the inner workings of car air conditioning in a simple, easy-to-understand way.
A Brief History of Car AC
Believe it or not, air conditioning in cars has been around for quite some time. Packard first introduced factory-installed AC in 1939, making them the pioneers of in-car cooling. By 1969, over half of all new vehicles came equipped with air conditioning as a standard feature.
Early AC systems were far from perfect. They lacked thermostats and had limited control options, but they were a massive improvement over rolling down the windows on a hot day!
The Evolution of Car AC Refrigerants
Car AC systems rely on refrigerants to cool the air, but not all refrigerants are created equal.
- R-12 (Freon) – Used for decades, this refrigerant was later found to harm the ozone layer. It was phased out in 1996.
- R-134a – Introduced as a safer alternative, this refrigerant became the industry standard for many years.
- R-1234yf – The latest refrigerant, introduced by the EPA in 2012, has a significantly lower environmental impact. By 2022, 97% of new cars in the U.S. were using R-1234yf.
These changes have made modern car AC systems more eco-friendly without compromising performance.
How Car AC Works: The Cooling Cycle
Your car’s AC operates by continuously cycling refrigerant between liquid and gas states while managing temperature and pressure. The process follows these key steps:
- Compression – The refrigerant gas is compressed, increasing its pressure and temperature.
- Condensation – The refrigerant cools down and turns into a high-pressure liquid.
- Expansion – The refrigerant pressure drops, lowering its temperature.
- Evaporation – The refrigerant absorbs heat from the cabin, turning back into a gas.
- Air Circulation – A fan blows the cooled air into the cabin.
This cycle repeats as long as the AC is running, keeping you comfortable inside your car.
Key Components of a Car AC System
To better understand how car air conditioning works, let’s break down its essential components.
1. Compressor – The Heart of the System
The compressor is the powerhouse of your AC system. Driven by the engine belt, it compresses the refrigerant gas, raising its pressure and temperature before sending it to the condenser. The compressor only handles gas—never liquid.
2. Condenser – The Heat Dissipator
Think of the condenser as a radiator for your AC. It removes heat from the refrigerant as air flows over it, causing the high-pressure gas to cool down and transform into a liquid.
3. Receiver-Dryer – The Moisture Eliminator
Before moving forward, the refrigerant passes through the receiver-dryer, which contains desiccants that absorb moisture. Removing excess moisture prevents ice blockages that could damage the AC system.
4. Expansion Valve (or Orifice Tube) – The Pressure Regulator
The expansion valve or orifice tube is responsible for reducing the refrigerant’s pressure and temperature before it enters the evaporator. While an expansion valve adjusts the flow dynamically, an orifice tube maintains a constant flow rate. Vehicles use one or the other, but not both.
5. Evaporator – The Cooling Core
Located inside the cabin (often near the passenger footwell), the evaporator absorbs heat from the air. This process turns the refrigerant back into a gas while a fan blows the now-cooled air into the vehicle’s interior.
6. Accumulator (For Orifice Tube Systems Only)
If your car has an orifice tube, it also includes an accumulator. This component ensures only gas enters the compressor, preventing damage from leftover liquid refrigerant.
Why Does Water Drip from the Car When the AC Is On?
Noticed water pooling under your car when the AC is running? That’s just condensation!
As the AC removes heat, it also extracts humidity from the air. This moisture collects on the evaporator and drains outside the vehicle. It’s perfectly normal and nothing to worry about.
Common Car AC Problems & Their Causes
Car AC systems, like any other mechanical component, can experience issues. Here are some common problems and their potential causes:
Warm Air Instead of Cold Air – Low refrigerant, a faulty compressor, or a clogged condenser.

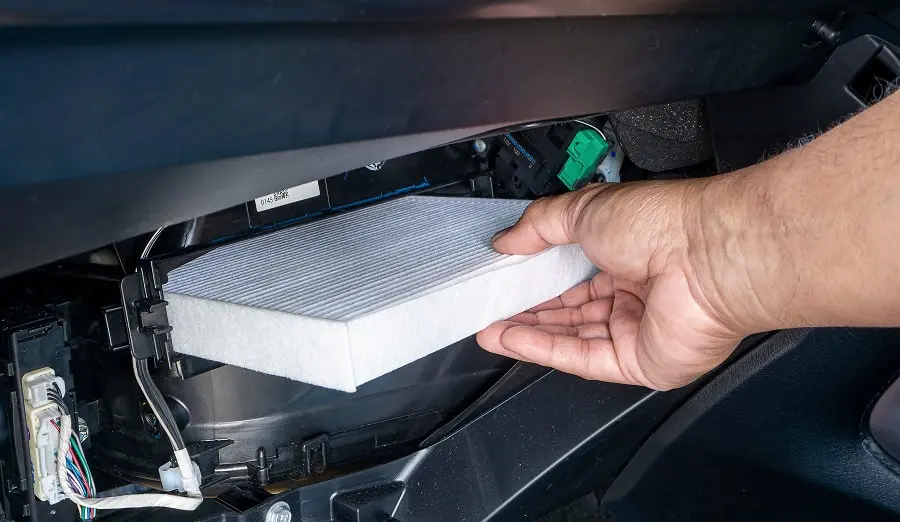

Weak Airflow – Blocked air filter, damaged fan, or debris in the evaporator.
Unusual Noises – A failing compressor, loose belts, or worn-out components.
Bad Odors – Mold or bacteria buildup in the AC system.
If you notice any of these problems, a professional AC inspection may be necessary.
Conclusion
Your car’s air conditioning system is a complex yet fascinating mechanism that keeps you cool on hot days. By understanding how it works, you can better maintain it and troubleshoot minor issues before they become costly repairs.

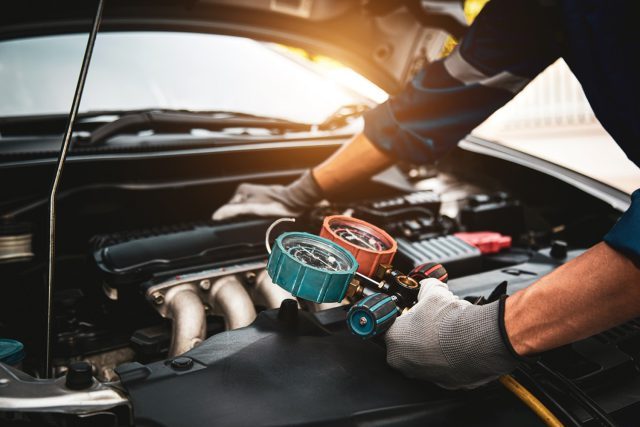

Regular maintenance—like checking refrigerant levels and keeping the condenser clean—will ensure your AC performs efficiently for years to come.
So, the next time you enjoy a refreshing drive, you’ll know exactly how your car’s AC is keeping you cool!
